Home » Products » Flux cored welding wire » AWS:E71T-1

Share to:

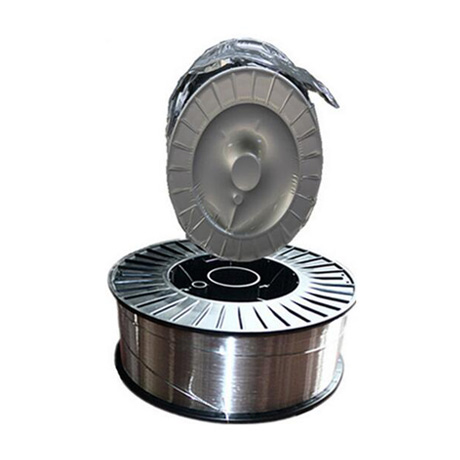

AWS:E71T-1

Model:
E71T-1
Brand:
Mighty
Code:
831130000

Quantity:



Inquire Add to Basket

Product Description

AWS A5.20 E71T-1
BS 7084 T522 GPH
CSA E491T-1-H8
EN758 T46 3 P M 1 H5
GB 10045 E501T-1

Description: It is a rutile type flux cored wire applicable for all-position welding by CO2 gas shielding.
It shows excellent welding performance and higher efficiency in welding, Vertical down welding could be processed.
It is widely used in structures fabricating by mild steel and 490MPa grade high tensile steel, such as ships, pressure vessels, machineries, bridges etc.

Chemical Composition of Deposited Metal (%)(CO2Shielding Gas)
Chemical Composition	C	Mn	Si	S	P
Guarantee Value	≤0.18	≤1.75	≤0.90	≤0.030	≤0.030
General Result	0.05	1.46	0.42	0.01	0.017

Mechanical Properties of Deposited Metal
	Yield Point Rm(MPa)	Tensile Strength ReL (Mpa)	Elongation (%)	Impact Value(J)		Shield Gas
				0°C	-20°C
Standard	≥400	≥480	≥22	≥47	≥27	CO2
Typical	450	540	30	120	100

Reference Current (DC+)
Wire Diameter(mm)		φ1.2	φ1.4	φ1.6
Current Range(A)	Down-hand Welding	120~300	150~400	180~450
	Vertical Upward Welding and Overhead Position Welding	120~260	150~270	180~280
	Vertical Downward Welding and Overhead Position Welding	200~300	220~300	250~300
	Horizontal Welding	120~280	150~320	180~350

Package: 1kgs/spool/carton, 5kgs/plastic spool/carton, 15kgs/plastic spool/carton, vacuum packing
15kgs/box,72cartons/pallet,total 1080kgs/pallet.20-23 pallets /1x20' FCL
5kgs/box,200cartons/pallet,total 1000kgs/pallet.20-24 pallets /1x20' FCL
