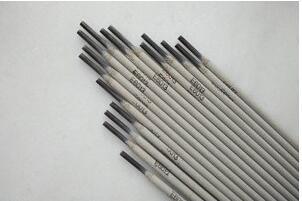

AWS: E8016-G

Model:
E8016-G
Brand:
Mighty

Quantity:



Inquire Add to Basket

Product Description

GB：E5516-G
AWS：E8016-G
Current：Suitable for welding medium-carbon steel and low-alloy steel structures like 15MnTi, 15MnV, etc.
Main Applications：

J556

According with GB E5516-G
Corresponding with AWS E8016-G

Introduction: J556 is a kind of low-alloy steel electrode with low-hydrogen potassium type coating. AC/DC. All-position welding.

Uses: Suitable for welding medium-carbon steel and low-alloy steel structures like 15MnTi, 15MnV, etc.

Chemical Composition of Deposited Metal (%)

Chemical Composition	C	Mn	Si	S	P
Guarantee Value	≤0.12	≥1.00	0.3~0.7	≤0.035	≤0.035

Mechanical Properties of Deposited Metal

Test Item	R_m(MPa)	R_eL或R_p0.2(Mpa)	A(%)	KV₂(J)
Guarantee Value	≥540	≥440	≥17	≥27(-30℃)
General Result	550~620	≥450	22~32	80~200

Diffusible Hydrogen Content in Deposited Metal:≤6.0ml/100g(Glycerine Hydrogen Test)

X-ray Radiographic Inspection:ⅠDegree

Reference Current(AC, DC+)

Electrode Diameter(mm)	φ3.2	φ4.0	φ5.0
Welding Current (A)	80~140	110~210	160~230

Instructions:
1.The electrodes must be baked under about 350℃ for an hour before welding, and used as soon as baking is completed.
2.The stains on the weldments, such as rust, oil stains, moisture, etc., must be cleared away before welding.
3.When welding, short arc must be used and stringer bead is suitable.
