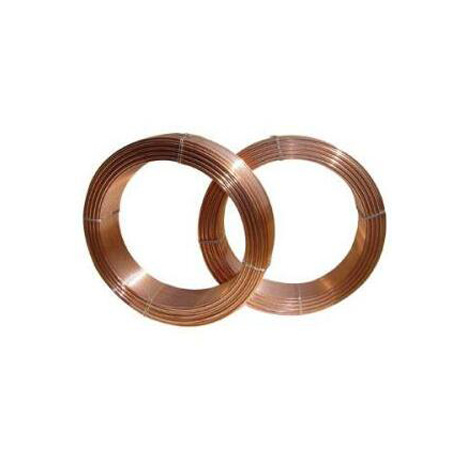

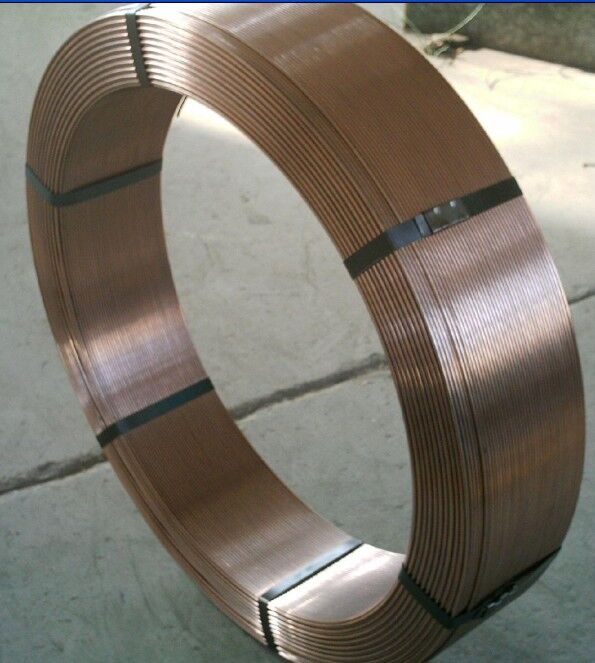

AWS:EL12

Model:
EL12
Brand:
Mighty
Code:
72292000
Package : 25kg, 50kg, 200kg,350kg/Coil
Slag: Acidic
Diameter: 2.0mm, 2.4mm, 3.2mm, 4.0mm, 5.0mm

Quantity:



Inquire Add to Basket

Product Description

AWS A5.17 F6A0-EL12
GB F4A4-H08A

Description:

EL12 flux/wire combination has very nice performance in welding, arc is stable, slag detachability is easy and weld metal shows a fine appearance,
Both AC and DC can be applied, when using DC, the wire should b contacted straight polarity.
It is suitable for submerged arc welding structures fabricated by 450MPa grade steel, e.g.LPG cylinder as well as ship structures as same strength.
Before welding, the workplace must clear away impurities and the flux must be baked in temperature of 200°C-250°C for 1-1.5 hours.

Chemical Composition(%)
	C	Mn	Si	S	P	Cu
Standard	0.05-0.15	0.25-0.60	≤0.07	≤0.035	≤0.035	≤0.35
Typical	0.065	0.45	0.03	0.020	0.016	0.09

Mechanical Properties of Deposited Metal
	Yield Point (MPa)	Tensile Strength ReL(Mpa)	Elongation(%)	Impact Value(J)
	Yield Point (MPa)	Tensile Strength ReL(Mpa)	Elongation(%)	-20°C
Standard	≥305	400-560	≥22	≥34
Typical	365	460	32	87
