AWS:EM12

Model:
EM12
Brand:
Mighty

Quantity:



Inquire Add to Basket

Product Description

AWS EM12

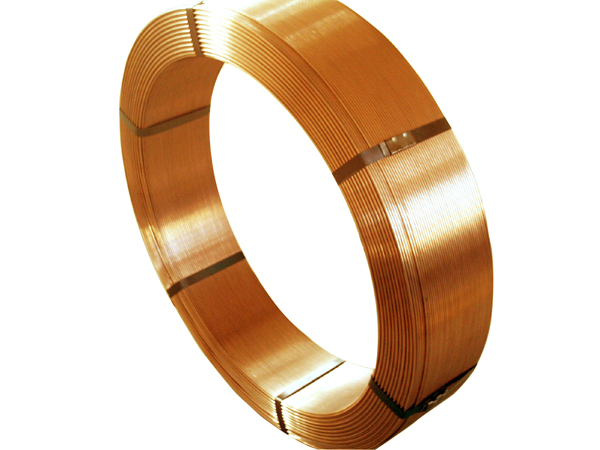

Submerged Arc Welding Wire
GB/T 5293 H08MnA
AWS A5.17 EM12 EN 756 S2
JIS W21

Introduction:It is a kind of medium-manganese and medium-silicon type welding wire. It matches with medium-manganese and medium-silicon type welding flux. It is not sensitive to the rust on the base metal. It has excellent bead molding and slag detachability. Monopole or dipole. AC/DC.

Application: Matched with fused flux HJ350(AWS F7A0-EM12) or sintered flux SJ101(AWS F7A4-EM12). Used for both high speed welding and filling welding on 450-500MPa grade base metals.Like boilers, high pressure vessels.

Chemical Composition of Welding Wire(%)

C	Mn	Si	S	P	Cr	Ni	Cu
≤0.10	0.8~1.10	≤0.07	≤0.03	≤0.03	≤0.20	≤0.30	≤0.50
0.08	0.88	0.04	0.013	0.018	0.02	0.021	0.16

Mechanical Properties of Deposited Metal

Flux Matched	Test Item	R_m(MPa)	R_eL/R_p0.2 (Mpa)	A(%)	KV₂(J)	KV₂(J)
F7A0-EM12	Guarantee Value	480-660	≥400	≥22	≥27(-20℃)	-
F7A0-EM12	General Result	550	420	29	80	-
F7A4-EM12	Guarantee Value	450-550	≥360	≥24	≥80(-20℃)	≥34(-40℃)
F7A4-EM12	General Result	480	400	30	115	80

Welding Wire Size

Diameter(mm)

2.0

2.5

3.2

4.0

5.0
