AWS:EM12K

Model:
EM12K
Brand:
Mighty

Quantity:



Inquire Add to Basket

Product Description

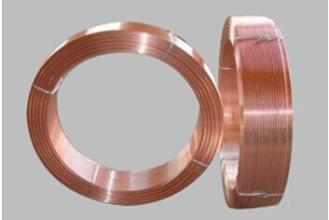

AWS EM12K
Submerged Arc Welding Wire
AWS A5.17 EM12K EN 756 S2Si

Introduction:It is a kind of medium-manganese and medium-silicon type welding wire. It matches with medium-manganese and medium-silicon type welding flux. It is not sensitive to the rust on the base metal. It has excellent bead molding and slag detachability. Monopole or dipole. AC/DC.

Application: Matched with agglomerated flux SJ301(AWS F7A0-EM12K) or agglomerated flux SJ101(AWS F7A4-EM12K). Used for fabricating normal strength structures made by450-500MPa grade base metals.Like boilers, high pressure vessels, LGP, cylinder.

Chemical Composition of Welding Wire(%)

C	Mn	Si	S	P	Cr	Ni	Cu
0.05~0.15	0.8~1.25	0.10~0.35	≤0.03	≤0.03	-	-	≤0.35
0.08	0.96	0.04	0.016	0.018	0.025	0.026	0.10

Mechanical Properties of Deposited Metal

Flux Matched	Test Item	R_m(MPa)	R_eL/R_p0.2 (Mpa)	A(%)	KV₂(J)	KV₂(J)
F7A0-EM12K	Guarantee Value	480-660	≥400	≥22	≥27(-20℃)	-
F7A0-EM12K	General Result	540	430	28	80	-
F7A4-EM12K	Guarantee Value	450-550	≥360	≥24	≥80(-20℃)	≥34(-40℃)
F7A4-EM12K	General Result	510	410	29	115	80

Welding Wire Size

Diameter(mm)

2.0

2.5

3.2

4.0

5.0
