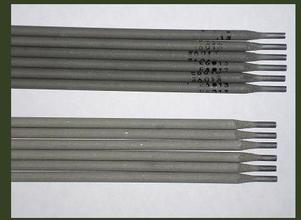

| R106Fe | According with GB E5018-A1
Corresponding with AWS E7018-A1 |
| Introduction: R106Fe is a kind of Mo0.5% pearlitic heat-resistant steel electrode with iron powder low-hydrogen type coating. AC/DC. All-position welding. The weldments should be given preheating and postweld heat treatment according to their structural features. |
| Uses: Used for welding boiler pipes below 510℃ (such as 15Mo). Also used for welding general low-alloy steel. |
Chemical Composition of Deposited Metal (%)
| Chemical Composition | C | Mn | Si | S | P | Mo | | Guarantee Value | 0.05-0.12 | ≤0.90 | ≤0.5 | ≤0.035 | ≤0.035 | 0.40~0.65 | |
Mechanical Properties of Deposited Metal
| Test Item | Rm(MPa) | ReL或Rp0.2(Mpa) | A(%) | KV2(J) | | Guarantee Value | ≥490 | ≥390 | ≥22 | ≥47(normal temperature) | | General Result | 510~570 | 400~450 | 22~28 | 110~160(normal temperature) | |
| Diffusible Hydrogen Content in Deposited Metal:≤6.0ml/100g(Glycerine Hydrogen Test) |
| X-ray Radiographic Inspection:ⅠDegree |
Reference Current(AC, DC+)
| Electrode Diameter(mm) | φ3.2 | φ4.0 | φ5.0 | | Welding Current (A) | 90~140 | 140~180 | 170~220 | |
Instructions:
1.The electrodes must be baked under about 350℃ for an hour before welding, and used as soon as baking is completed.
2.The stains on the weldments, such as rust, oil stains, moisture, etc., must be cleared away before welding. |
