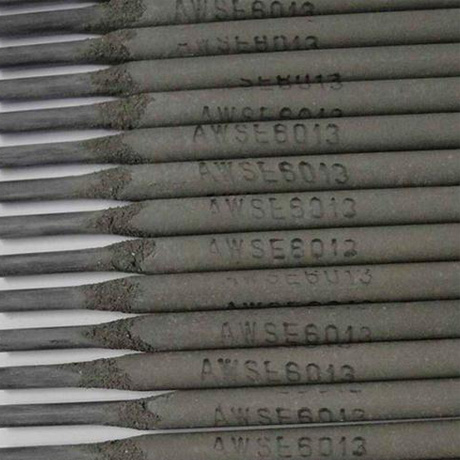

AWS:E6013

Model:
E6013
Brand:
Mighty
Code:
83111000
Welding Position: All position
Diameter: 2.0mm, 2.5mm,3.2mm,4.0mm,5.0mm
Samples: Free
Certificate : ABS,LR,GL,CCS

Quantity:



Inquire Add to Basket

Product Description

Conform to: AWS A5.1 E6013
BS E4332R [11]    EN E420RR12
CSA E4313         JIS D4313
DIN 4332R3        GB/T5117 E4313
Description:
AWS A5.1 E6013 is the general purpose mild steel welding electrode with titanium oxide type coating.
It is able to provide excellent welding performance and satisfactory weld can be obtained in all position welding.
It is widely used in ordinary strength mild steel structures especially suitable for intermittent welding to sheet steel
and small work pieces as well as cosmetic welding with smooth and shiny appearance.
Chemical Composition of Deposited Metal (%)

Item	C	Mn	Si	S	P
Guarantee Values	≤0.12	0.3-0.6	≤0.35	≤0.035	≤0.040
Typical Values	0.07	0.38	0.27	0.021	0.022

X-Ray Radiographic Inspection: Grade II
Mechanical Properties of Deposited Metal:

Test Item	Tensile Strength R_m(Mpa)	Yield Strength R_eL(Mpa)	Elongation (%)	KV₂ (J)	KV₂ (J)0ºC
Standard	≥420	≥330	≥17	Normal Temperature	≥47
Typical	480	380	29	50-80	80

Recommended Welding Currents:

Specification(mm)		Currents Range (A)
Diameter	Length	Flat	Vertical & Overhead
2.0	300	40-60	30-55
2.5	300	60-90	60-80
3.2	350	90-130	80-100
4.0	400	150-200	140-170
5.0	400	160-230	150-210

Packing:
5kg/box, 4boxes/carton, 50cartons/pallet. 21MT-26MTper1X20" FCL.
