Home » Products » Welding electrodes for carbon steel » AWS:E6024

Share to:

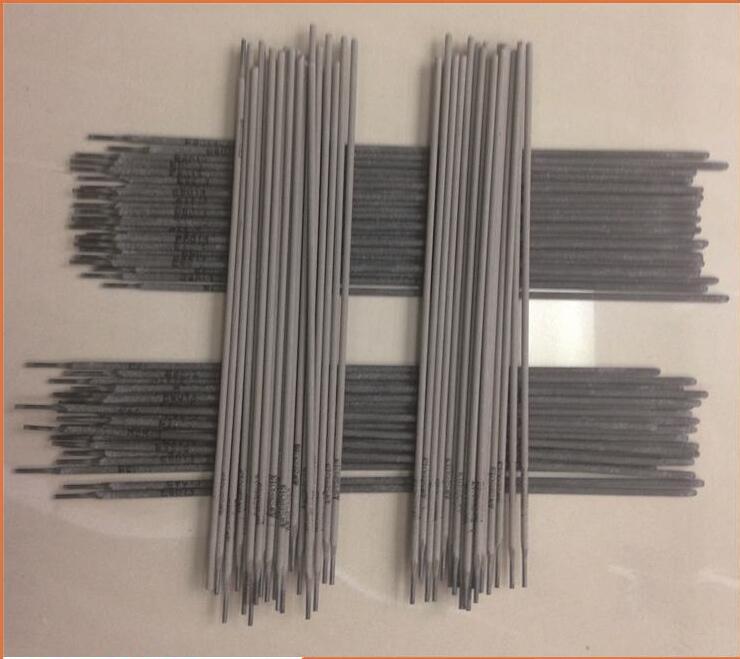

AWS:E6024

Model:
E6024
Brand:
Mighty
Code:
83111000

Quantity:



Inquire Add to Basket

Product Description

AWS A5.1-2004: E6024
ASME SFA-5.1:E6024
GB/T5117 E4324

Introduction:
It is a kind of carbon steel electrode with iron powder titania type coating. AC/DC. Suitable for downhand welding and flat fillet welding. It has easy reignition, fewer spatters, good slag detachability and beautiful appearance of weld. The deposition efficiency can reach approximately 160%.

Application:
Used for downhand welding and flat fillet welding on general low-carbon steel structures.

Chemical Composition of Deposited Metal (%)

	C	Mn	Si	S	P
Guarantee Values	≤0.12	0.3-0.6	≤0.35	≤0.035	≤0.040

Mechanical Properties of Deposited Metal

Test Item	Tensile Strength R_m(Mpa)	Yield Strength R_eL(Mpa)	Alongation (%)	KV₂ (J)
Guarantee Values	≥420	≥330	≥17	Normal Temperature
Typical Values	450-510	≥340	18-25	60-100

Size and Recommended Welding Current(AC or DC)

Size (mm)	3.2x350	4.0x400	5.0x400
Current(A)	100-160	160-240	210-270

Notice: Normally the welding electrode does not need to re-bake in case it is affected with damp seriously re-bake it at 150℃ for 30-60 minutes before use.
