GB :E5001

  • GB E5001

  • Mighty

Quantity:
Inquire Add to Basket

GB：E5001
AWS：
Current：Suitable for welding low-alloy steel, such as 16Mn, etc.
Main Applications：
According with GB E5001

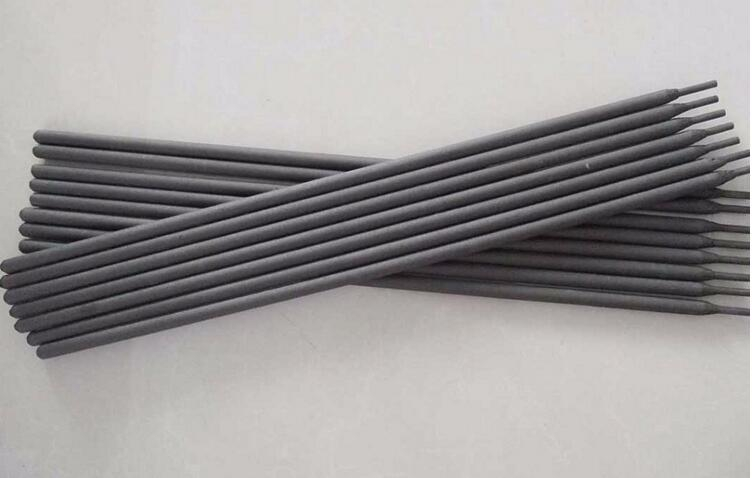

Introduction: GB E5001 is a kind of carbon steel electrode with titania ferric type coating. AC/DC. Suitable for downhand welding and flat fillet welding. Its welding performance will be better when used in vertical position welding, but not better than that of GB E5003. It has stable arc, deeper penetration, good fluidity of slags, good slag detachability and regular ripples.

Uses: Suitable for welding low-alloy steel, such as 16Mn, etc.

Chemical Composition of Deposited Metal (%)
Chemical Composition C Mn Si S P
Guarantee Value ≤0.12 0.5~0.9 ≤0.3 ≤0.035 ≤0.040

Mechanical Properties of Deposited Metal
Test Item Rm(MPa) ReL(Mpa) A(%) KV2(J)
Guarantee Value ≥490 ≥400 ≥20 ≥27(0℃)
General Result 530~570 ≥420 22~30 60~110

X-ray Radiographic Inspection:ⅡDegree

Reference Current(AC, DC)
Electrode Diameter(mm) φ2.0 φ2.5 φ3.2 φ4.0 φ5.0
Welding Current (A) 40~70 60~100 80~140 140~220 180~240
